NEW QUESTION # 55
[Note: The Mac version Is shown in parentheses.]
The ETRANSMIT command Is used to send a package of drawings to a client. The client now states that every drawing file that 15 opened is looking tor SHX tiles that they do not have How should the Transmittal Setup (Package Drawing) dialog he modified to include the missing SHX files'?
- A. Change the path options.
- B. include fonts
- C. Include unloaded file references
- D. Change the file format
Answer: B
Explanation:
Open ETRANSMIT Command: Type ETRANSMIT in the command line and press Enter to open the Create Transmittal dialog box.
Open Transmittal Setup: Click on the Transmittal Setup button to modify the settings.
Modify Transmittal Setup: In the Transmittal Setup dialog box, make sure to select the option Include fonts to ensure SHX files (fonts) are included in the transmittal package.
Save Changes: Click OK to save the settings and then create the transmittal package. This will ensure that all necessary SHX files are included with the drawings sent to the client.
References:
* AutoCAD Help Documentation on ETRANSMIT Command
NEW QUESTION # 56
You need to change the width of a specific polyline without affecting the width of the other polylines in a drawing.
What should you use?
- A. The PLINEGEN system variable
- B. The LWEIGHT command
- C. The PEDIT command
- D. The PLINEWID system variable
Answer: C
Explanation:
Explanation
polyline is a connected sequence of line segments created as a single object that can contain a width. You can change the width of a polyline by using the PEDIT command.
Based on 3 and 4, LWEIGHT is a command that sets the current lineweight, which is used for new objects and affects objects in the current space only. PLINEWID is a system variable that sets a default polyline width for new polylines. PLINEGEN is a system variable that controls how linetype patterns are generated around vertices.
https://www.roadlesstraveledstore.com/how-do-i-change-the-width-of-a-polyline-in-autocad/
https://knowledgeburrow.com/how-do-i-change-the-width-of-a-polyline-in-autocad/
NEW QUESTION # 57
Your company asks you to research alternative editable CAD formats to export to for non-AutoCAD users.
Which three alternative CAD file formats can be exported from AutoCAD? (Select 3)
- A. BMP
- B. IAM
- C. RVT
- D. DWF
- E. STL
Answer: B,D,E
Explanation:
Explanation
https://knowledge.autodesk.com/support/revit/learn-explore/caas/CloudHelp/cloudhelp/2022/ENU/Revit-Docum
NEW QUESTION # 58
You have the drawing shown in the exhibit.
You are using the DIM command to preview suitable dimension type objects in the drawing.
Which dimension type will appear when you hover over each object? Select the appropriate dimension type from each of the drop-down lists.
Answer:
Explanation:
* When you hover over the arc (1), you will see a radius dimension type preview.
* When you hover over the circle (2), you will see a diameter dimension type preview.
* When you hover over the horizontal line (3), you will see a horizontal linear dimension type preview.
* When you hover over the angled line (4), you will see an angular dimension type preview.
NEW QUESTION # 59

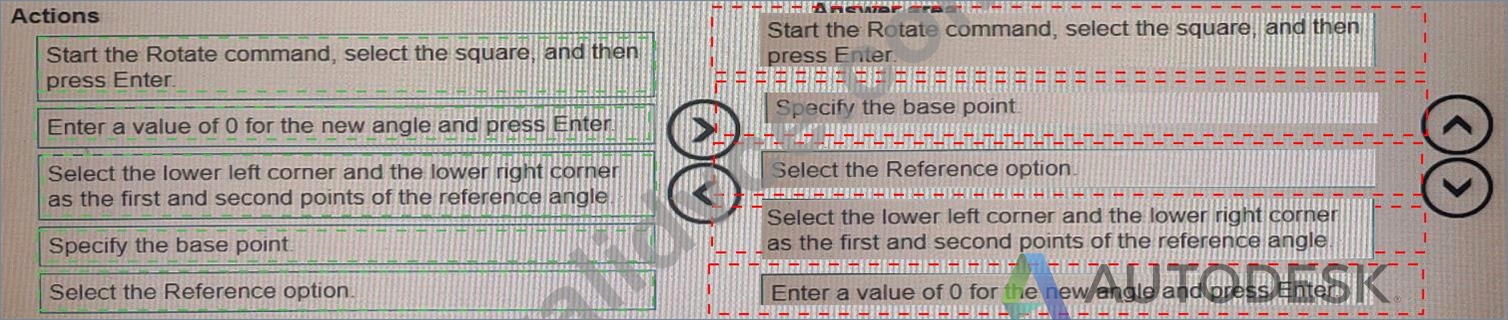

In which order should you perform the actions to rotate square (1) to match the angle of square (2).
Move all actions to the answer area and place them in the correct order.
Answer:
Explanation:
Explanation:
rotate is a command that rotates selected objects around a base point to an absolute angle. You can specify the base point and the rotation angle by entering values or selecting points. You can also use the reference option to align objects with other objects.
* 1- Start the Rotate command, select the square, and press Enter
* 4- Specify the base point
* 5- Select the Reference option
* 3- Select the lower left corner and the lower right corner as the first and second points of the reference angle
* 2- Enter a value of 0 for the new angle and press Enter
NEW QUESTION # 60

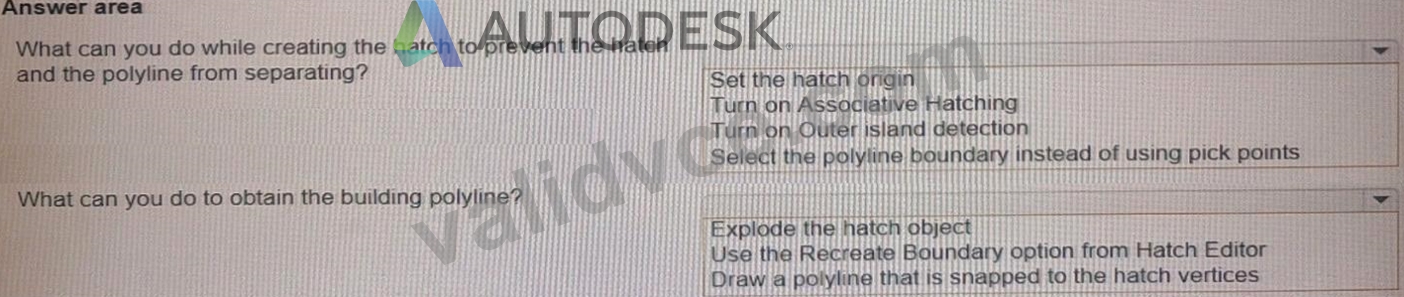

A site plan was recently modified to relocate a building to a new location While relocating the building, only the hatch location of the building was moved by mistake as shown in the exhibit.
Evaluate the graphic and answer each question by selecting the correct options from the drop-down lists.
Answer:
Explanation:
Explanation
Box 1 = Turn on Associative Hatching
Box 2 = use the Recreate Boundary option from Hatch Editor
https://knowledge.autodesk.com/support/autocad/troubleshooting/caas/sfdcarticles/sfdcarticles/Recreating-hatch-
https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2018/ENU/AutoCAD
NEW QUESTION # 61
Refer to exhibit.
[Note: Exhibit shown is the AutoCAD interlace in Windows. While the AutoCAD for Mac version differs in appearance, the correct answers correlate in the options.] After completing markups for a portion of limit project, a CAD designer must publish new PDFs (01 sheets C200 and C201 The Sheet List (.dsd) Km the project includes all drawing sheets for the project as shown in the exhibit.
Which workflow should be used to publish PDEs for the updated sheets only?
- A. Select the C100 and C101 sheets, change Page Setup to Do Not Plot, and click Publish
- B. Select the C100 and C101 sheets click the Remove Sheets (-) button and click Publish
- C. Select the C200 and C201 sheets from the list, and click Publish.
- D. Select the C100 and C101 sheets set Number of copies to 0. and click Publish
Answer: B
NEW QUESTION # 62
You are setting up a drawing layout.
You need to rotate the viewport viewing angle by 90 degrees without rotating the viewport.
What should you do next?
- A. Activate the viewport that you want to. Start the Dview command and use the Camera option.
- B. Activate the viewport that you want to rotate. Start the Dview command and use the Twist option.
- C. Select the viewport that you want to rotate, and then use the UCS command with the Z Axis option.
- D. Select the viewport that you want to rotate, and then use the Rotate command.
Answer: B
Explanation:
Explanation
you need to activate the viewport that you want to rotate and start the Dview command with the Twist option.
This will allow you to rotate the view within a viewport without rotating the viewport itself.
https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2020/ENU/AutoCAD
NEW QUESTION # 63
You need to configure the layout viewports shown in the exhibit.
Which three methods can you use to create the viewports in a layout tab? (Select 3)
- A. Create a new page setup.
- B. Clip a viewport to multiple different shapes by using the VPCLIP command.
- C. From the View Manager dialog box, generate named views and add them as layout viewpoints.
- D. Create individual viewports by using the MVIEW command.
- E. From the Viewports dialog box: select a viewport configuration.
Answer: C,D,E
Explanation:
a layout viewport is a window that displays a view of model space on a layout tab. You can create multiple layout viewports to display different views of your model at different scales.
To create the viewports in a layout tab, you can use three methods:
* From the Viewports dialog box: select a viewport configuration
* Create individual viewports by using the MVIEW command
* From the View Manager dialog box, generate named views and add them as layout viewpoints These methods will allow you to create and arrange viewports on your layout tab.
https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2018/ENU/AutoCAD
NEW QUESTION # 64
You need to configure the layout viewports shown in the exhibit.
Which three methods can you use to create the viewports in a layout tab? (Select 3)
- A. Create a new page setup.
- B. Clip a viewport to multiple different shapes by using the VPCLIP command.
- C. From the View Manager dialog box, generate named views and add them as layout viewpoints.
- D. Create individual viewports by using the MVIEW command.
- E. From the Viewports dialog box: select a viewport configuration.
Answer: C,D,E
Explanation:
Explanation
a layout viewport is a window that displays a view of model space on a layout tab. You can create multiple layout viewports to display different views of your model at different scales.
To create the viewports in a layout tab, you can use three methods:
* From the Viewports dialog box: select a viewport configuration
* Create individual viewports by using the MVIEW command
* From the View Manager dialog box, generate named views and add them as layout viewpoints These methods will allow you to create and arrange viewports on your layout tab.
https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2018/ENU/AutoCAD
NEW QUESTION # 65
Tors project area to be completely visible on a sheet, a custom drawing scale of 1: 120 is added to the drawing After the drawing content is positioned in the viewport using the new drawing scale for the viewport's annotation and standard scales, all annotative objects m the viewport disappear.
No changes are made to the layers within the viewport
What should be done to make the annotative objects visible in the newly scaled viewport?
- A. Set the annotation monitor to OFF within the viewport.
- B. Select annotative objects and sot multiple scale positions
- C. Add the 1-120 scale to annotative objects in model space.
- D. Move the annotative objects to a new layer named 1.120.
Answer: C
Explanation:
* Understanding Annotative Objects:
* Annotative objects in AutoCAD are designed to automatically adjust their size based on the viewport scale to ensure readability.
* Issue with Custom Drawing Scale:
* When a new custom scale (1:120) is applied, annotative objects disappear if they are not configured to support the new scale.
* Options to Resolve the Issue:
* Option A: Turning off the annotation monitor within the viewport does not resolve scale issues.
* Option B: Moving objects to a new layer does not affect their annotative properties.
* Option D: Setting multiple scale positions is a partial solution but does not directly address the missing scale.
* Correct Solution:
* Option C: Adding the 1:120 scale to the annotative objects in model space ensures that these objects recognize and adjust to the new scale within the viewport.
* Steps to Add Scale:
* Select annotative objects in model space.
* Right-click and choose "Annotative Object Scale" from the context menu.
* Add the new scale (1:120) to ensure objects appear correctly in the viewport.
References:
* AutoCAD Help Documentation on Annotative Objects and Scaling.
* AutoCAD 2024 User Guide on Managing Annotative Properties.
NEW QUESTION # 66

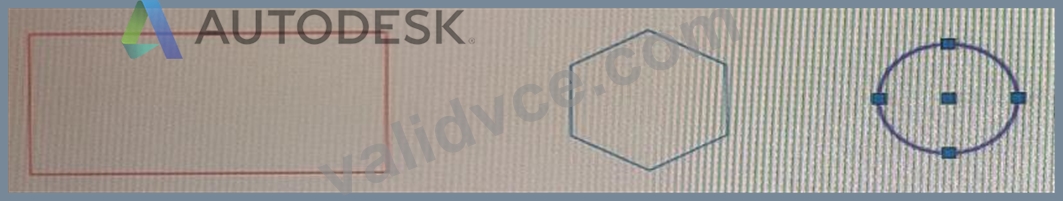

You have the drawing shown in the exhibit.
You need to place the polygon and the rectangle on the same layer as the circle.
Which command should you use to complete the task in the least number of steps?
- A. Make Current (LAYMCUR)
- B. Match Properties
- C. Copy
- D. ByLayer
Answer: B
Explanation:
Explanation
match properties is a command that allows you to apply the properties of one object to another object. You can use this command to change the layer of an object by selecting an object on the desired layer as a source.
To use this command, you can either:
* Click on the Match Properties icon in the Properties panel of the Home tab.
* Type MATCHPROP at the command prompt and press Enter.
Then, you can follow these steps:
* Select an object on the same layer as the circle as a source object and press Enter.
* Select the polygon and the rectangle as destination objects and press Enter.
Now you have placed the polygon and the rectangle on the same layer as the circle.
NEW QUESTION # 67
You are setting up a drawing layout.
You need to rotate the viewport viewing angle by 90 degrees without rotating the viewport.
What should you do next?
- A. Activate the viewport that you want to. Start the Dview command and use the Camera option.
- B. Activate the viewport that you want to rotate. Start the Dview command and use the Twist option.
- C. Select the viewport that you want to rotate, and then use the UCS command with the Z Axis option.
- D. Select the viewport that you want to rotate, and then use the Rotate command.
Answer: B
Explanation:
you need to activate the viewport that you want to rotate and start the Dview command with the Twist option.
This will allow you to rotate the view within a viewport without rotating the viewport itself.
https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2020/ENU/AutoCAD
NEW QUESTION # 68
Select whether each statement is True or False.
Answer:
Explanation:
Explanation
True
1. According to the AutoCAD for Design and Drafting documents1, a polyline is a connected sequence of line segments created as a single object. You can create straight line segments, arc segments, or a combination of the two2341. Therefore, the correct answer is True. A polyline can include both straight line segments and arc segments.
2. False.According to the AutoCAD for Design and Drafting documents1, a spline is a smooth curve that passes through or near a set of fit points, or that is defined by the vertices in a control frame. A spline does not have a constant radius, but rather a local radius at each point on the curve2. Therefore, AutoCAD cannot directly dimension or display a radius of a spline curve23. You can use some workarounds such as exploding the curve to arc segments with the FLATTEN command2, or creating a polyline over the top with arc active3, but these may not be accurate or desirable. Therefore, the correct answer is False. The radius on a spline cannot be found in AutoCAD properties.3. TrueAccording to the AutoCAD for Design and Drafting documents1, a 2D polyline is a connected sequence of line segments created as a single object. You can specify an elevation for a 2D polyline using the Edit Polyline Elevations command2. However, this command will assign the same elevation to all vertices of the polyline2. Therefore, you cannot assign different elevations to different segments or points of a 2D polyline. Therefore, the correct answer is True. You can assign only one elevation to a 2D polyline.
NEW QUESTION # 69
You have the drawing shown in the exhibit.
You are using the DIM command to preview suitable dimension type objects in the drawing.
Which dimension type will appear when you hover over each object? Select the appropriate dimension type from each of the drop-down lists.
Answer:
Explanation:
* When you hover over the arc (1), you will see a radius dimension type preview.
* When you hover over the circle (2), you will see a diameter dimension type preview.
* When you hover over the horizontal line (3), you will see a horizontal linear dimension type preview.
* When you hover over the angled line (4), you will see an angular dimension type preview.
NEW QUESTION # 70

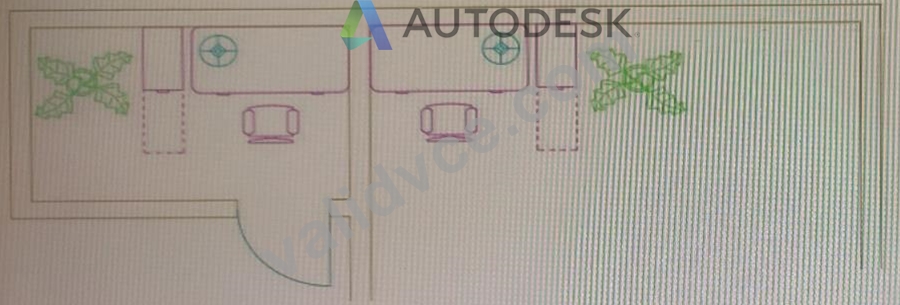

You have the office arrangement shown in exhibit 1. (Refer to the exhibit 1 tab.)
You need a mirror line to create the right-hand office arrangement shown in exhibit 2. (Refer to the exhibit 2 tab.)
Which tool would you use to make sure the mirror line is centered between the two wall lines without adding additional linework?
- A. Intersection (INT)
- B. Mid Between Two Points (M2P)
- C. Midpoint (MID)
- D. Endpoint (END)
Answer: B
Explanation:
Explanation
https://www.tutorial-autocad.com/mirror-command
http://docs.autodesk.com/ACD/2011/ENU/filesMDG/WS1a9193826455f5ff2566ffd511ff6f8c7ca-3f53.htm
NEW QUESTION # 71
......
